73-85 Atc70 top nut headlight switch (white led)

73-85 Atc70 top nut headlight switch (white led)

Regular price $39.00 USD
Regular price Sale price $39.00 USD
Sale Sold out
Shipping calculated at checkout.

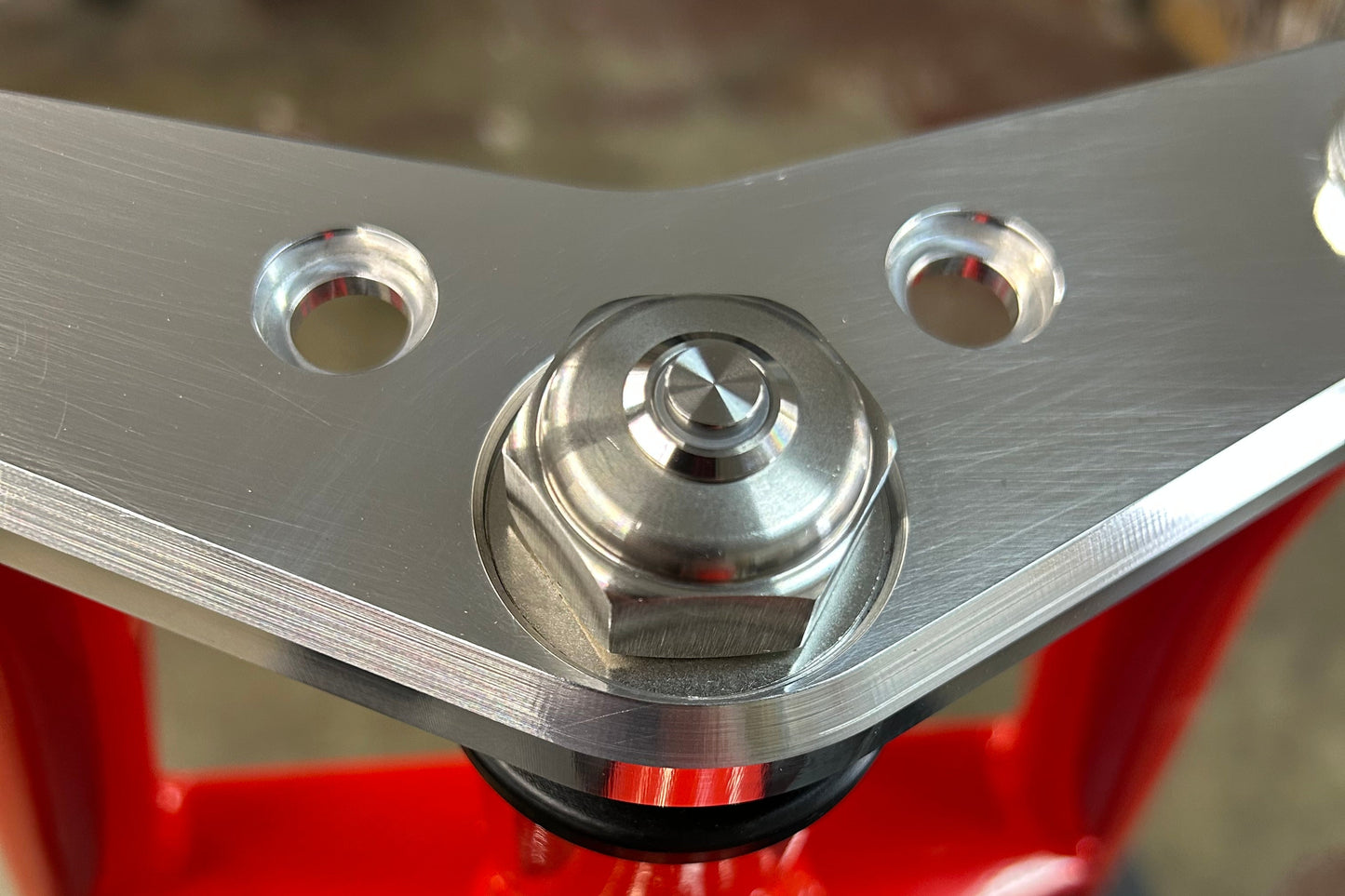

  • Replaces your center nut with a clean and custom aluminum headlight switch

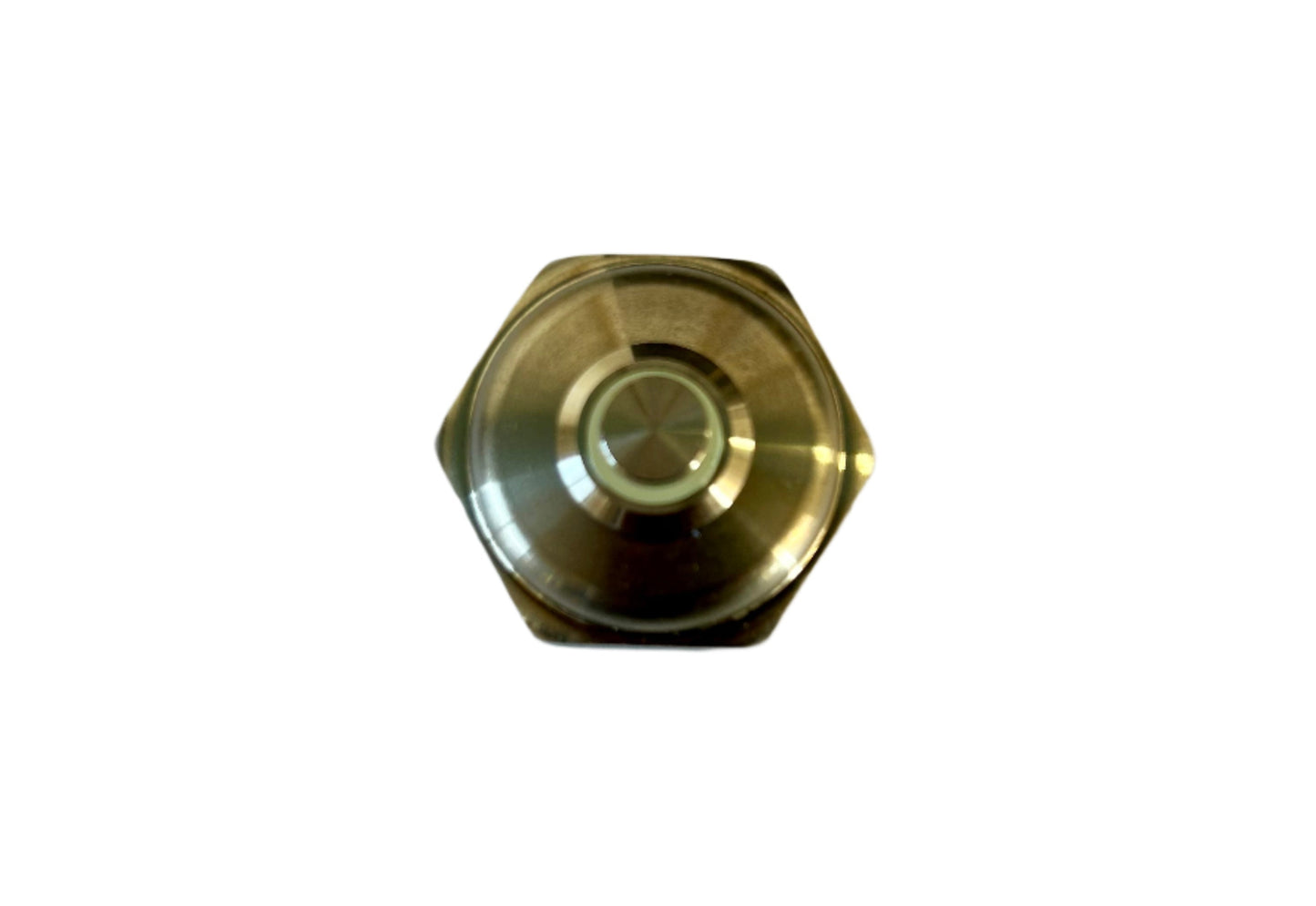

  • Led will Illuminate with a white led ring around the outside of center switch when connected to a 12v power source (can not be illuminated directly off a stator needs a battery)
  • On/off latching style switch
  • Switch will only illuminate white when the headlight is turned on

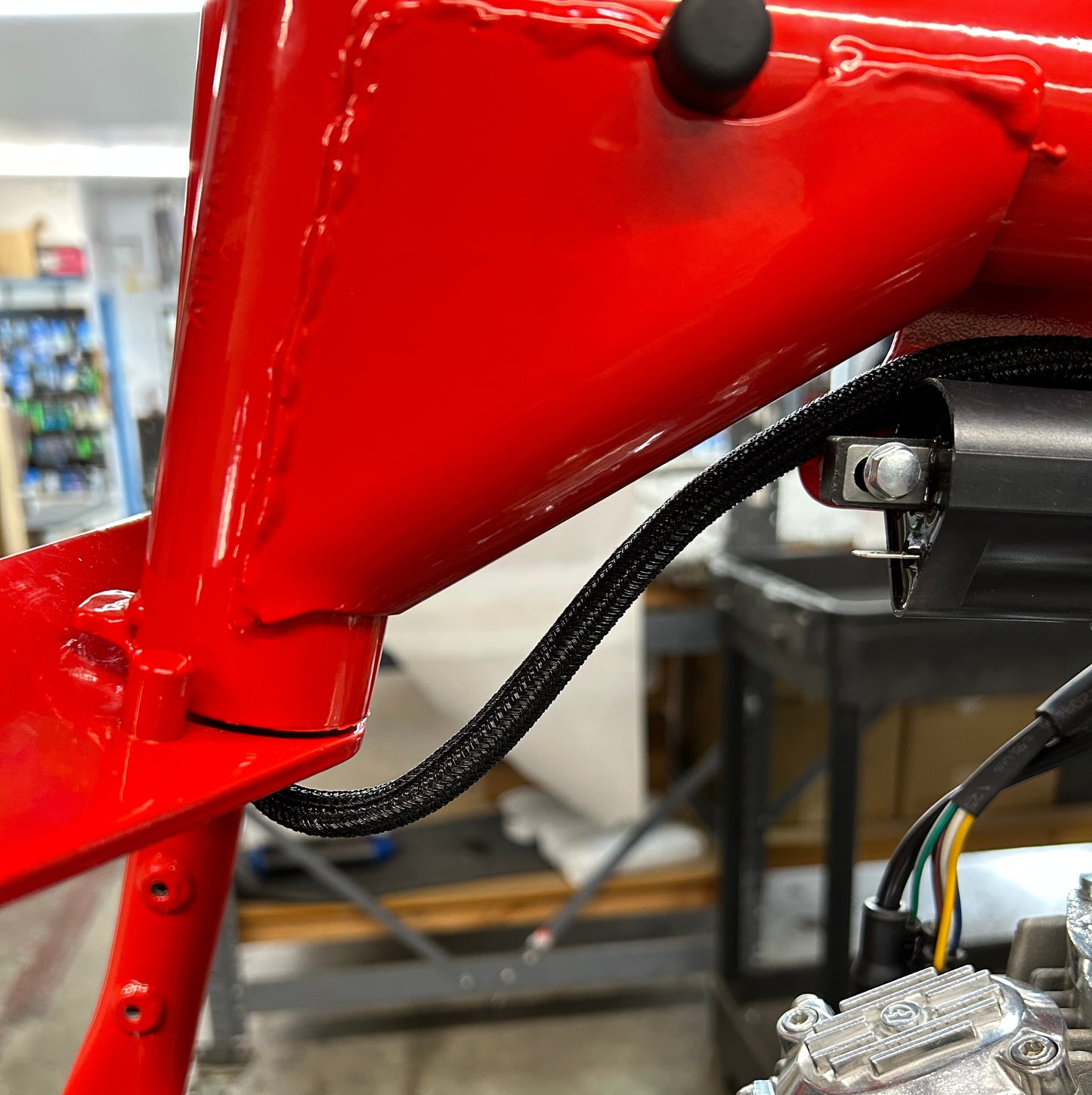

  • Does require the wire's to go down the frame tube out the bottom see photo
  • Headlight switch wiring
    • Red- 12v input
    • White- 12v output to headlight
    • Green- Ground
  • Carefully tighten the top nut before any wiring
  • Brushed finish on nut and button
